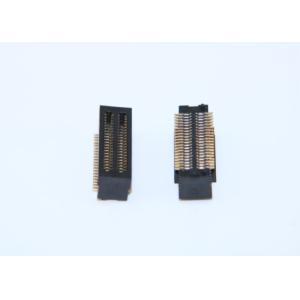

    Buy cheap AC/DC Board To Board Connector 5001-BTB0540-40F 0.5mm Pitch 4.0mm H 2*20 Pins from wholesalers

    Buy cheap AC/DC Board To Board Connector 5001-BTB0540-40F 0.5mm Pitch 4.0mm H 2*20 Pins from wholesalers
    • Buy cheap AC/DC Board To Board Connector 5001-BTB0540-40F 0.5mm Pitch 4.0mm H 2*20 Pins from wholesalers

    AC/DC Board To Board Connector 5001-BTB0540-40F 0.5mm Pitch 4.0mm H 2*20 Pins

    Ask Lasest Price
    Brand Name : DALEE
    Model Number : 5001-BTB0540-40F
    Certification : ROHS ,SGS, ISO9001
    Payment Terms : T/T, L/C, Western Union,paypal
    Supply Ability : 1000K/month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    AC/DC Board To Board Connector 5001-BTB0540-40F 0.5mm Pitch 4.0mm H 2*20 Pins


    Female type BTB Connector with double row contact ,5001-BTB0540-40F 0.5mm pitch 4.0mm H 2*20 pins


    Extensive range of quality, competitive Board to Board Connectors with industry standard configuration and footprints for new product designs or substitution of manufacturers including 5001-BTB0540-40F


    Board to Board Connectors are designed to enable the connection of PCB’s without cables, in various board orientations such as Mezzanine / Stacked, Right Angled or Side by Side.


    Main features:

    • Reliable mechanical and electrical connections, thanks to the double-sided contact system
    • Various numbers of positions, designs, and stack heights with high wipe lengths
    • Compact, high-position board-to-board and wire-to-board connectors for space-saving device designs
    • Additional solder anchors reduce the mechanical strain on the soldering spots

    Product Description :


    Product name:DALEE BTB connector
    Secification:0.5mm Pitch
    part number:

    5001-BTB0540- 40F

    Certification:ISO9001,UL,ROHS and the latest REACH
    Operating voltage:10V AC(RMS)/DC
    Withstand Volt :200 V AC/minute
    Operating Temprature:-25 ℃ - +80 ℃
    Insulation Resistance500M ohms min. at 250VDC
    Dielectric withstandig voltae:500VAC/1minute
    Contact Resistance:1000m ohms max
    Contact material:Phosphor bronze/gold plated
    Housing:LCP, UL94V-0, white

    Competitive Advantages:


    1, 11 year's experience in the electronic business

    2, Strong R&D team specialized in connector and model design

    3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification

    4, Strict shipping ,100% tested before delivery

    5, Fast delivery,purchasing orders shipped in 3-10 days

    6, Samples can be provided for free in 1-3 days


    Product Application:


    1, electrical equipment .

    2, Communications Industry.

    3, Security Equipment.

    4, Automotive Filed

    5, Network Communications

    6, Measuring Instruments


    Product Type & Condition :


    Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated . So,please consult the stock situation when you inquire.


    Warranty & Guarantee : All components we sell the quality with 30 days Return policy from the day of shipment.
