19 Pin HDMI Cable Connector Gold Plated Contact Housing Long Service Life

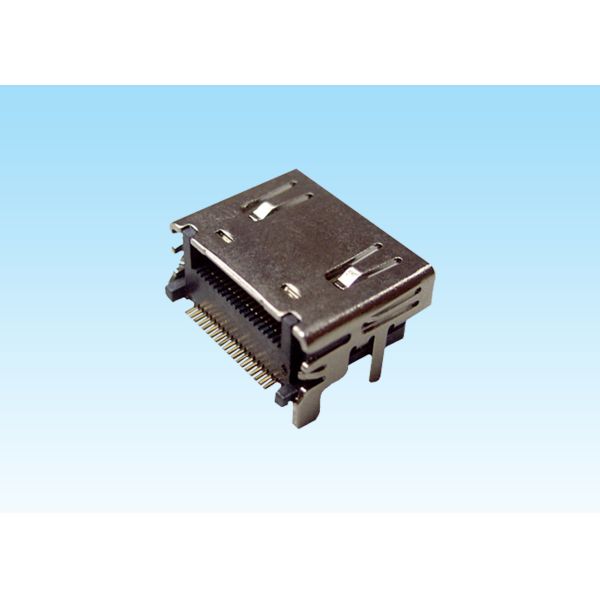

    Buy cheap 19 Pin HDMI Cable Connector Gold Plated Contact Housing Long Service Life from wholesalers

    Buy cheap 19 Pin HDMI Cable Connector Gold Plated Contact Housing Long Service Life from wholesalers
    • Buy cheap 19 Pin HDMI Cable Connector Gold Plated Contact Housing Long Service Life from wholesalers

    19 Pin HDMI Cable Connector Gold Plated Contact Housing Long Service Life

    Ask Lasest Price
    Brand Name : DALEE
    Model Number : DL50010902
    Certification : ROHS ,SGS, ISO9001
    Price : Negotiable
    Payment Terms : T/T,Western Union
    Supply Ability : 10kk/ month
    Delivery Time : 5-10 working days
    • Product Details
    • Company Profile

    19 Pin HDMI Cable Connector Gold Plated Contact Housing Long Service Life

    19 Pin HDMI Cable Connector A-Type Dip of four foot with Gold -plated used in PCB


    Product details:


    Product name:DALEE HDMI Cable Connector
    Secification:DIP
    Type :HDMI-A
    Gender:Female
    Certification:ISO9001,UL,ROHS and the latest REACH
    Pin:19 Pin
    Rated voltage:40 V
    Rated Current:0.5 A
    Contact Resistance:10mΩ MAX
    Insulation Resistance(unmated):100mΩ/MIN AT 500 VDC
    Insulation Resistance(mated):10mΩ/MIN AT 150 VDC
    Insertion Force:44.1 N/ MAX
    Extroction Force:5 N/MIN, 25N/ MAX
    Life :8000 Cycles min
    Business Type:Manufacturer
    Application:PCB board



    HDMI Cable Connector Material :
    1) Gold Plating:1u ,3u 6u 15u 30u 50u.
    2) Storage Temperature: -20ºC to +85ºC
    3) Contact Mating Area Plating Material: Gold 6u/15u/30u/50u
    4) Shield Material: Copper Alloy preplated with Nickel.

    5) Operating Temperature: -20ºC to +85ºC


    HDMI Connector Drawing :




    Dalee Connector Main Export Markets : Africa,Asia,South and North America and Europe and so on .


    HDMI Connectors Application:

    1) Automotive products
    2) Computer notebook
    3) smart home products
    4) LAN Ethernet and network
    5) Medical equipment
    6) Fingerprint lock
    7) TV boxes
    8) Rear DVR video recorder


    Dalee Connector Advantages:

    1, samples can be provided for free in 1-3 days
    2, Strict shipping ,100% tested before the delivery.
    3, One stop service of connectors with high quality and best service after sales
    4, Quality certification ,including ROHS,SGS,ISO9001 and UL certification.
    5, we also can provide the customized products as the request of clients.
    6, fast delivery,purchasing orders shipped in 3-10 days.


    Payment term and delivery:


    1. MOQ:1000pcs.
    2. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs
    3. Payment way: T/T, Paypal , Western Union or others method.
    4. Payment term: 100% T/T in advance before production.
